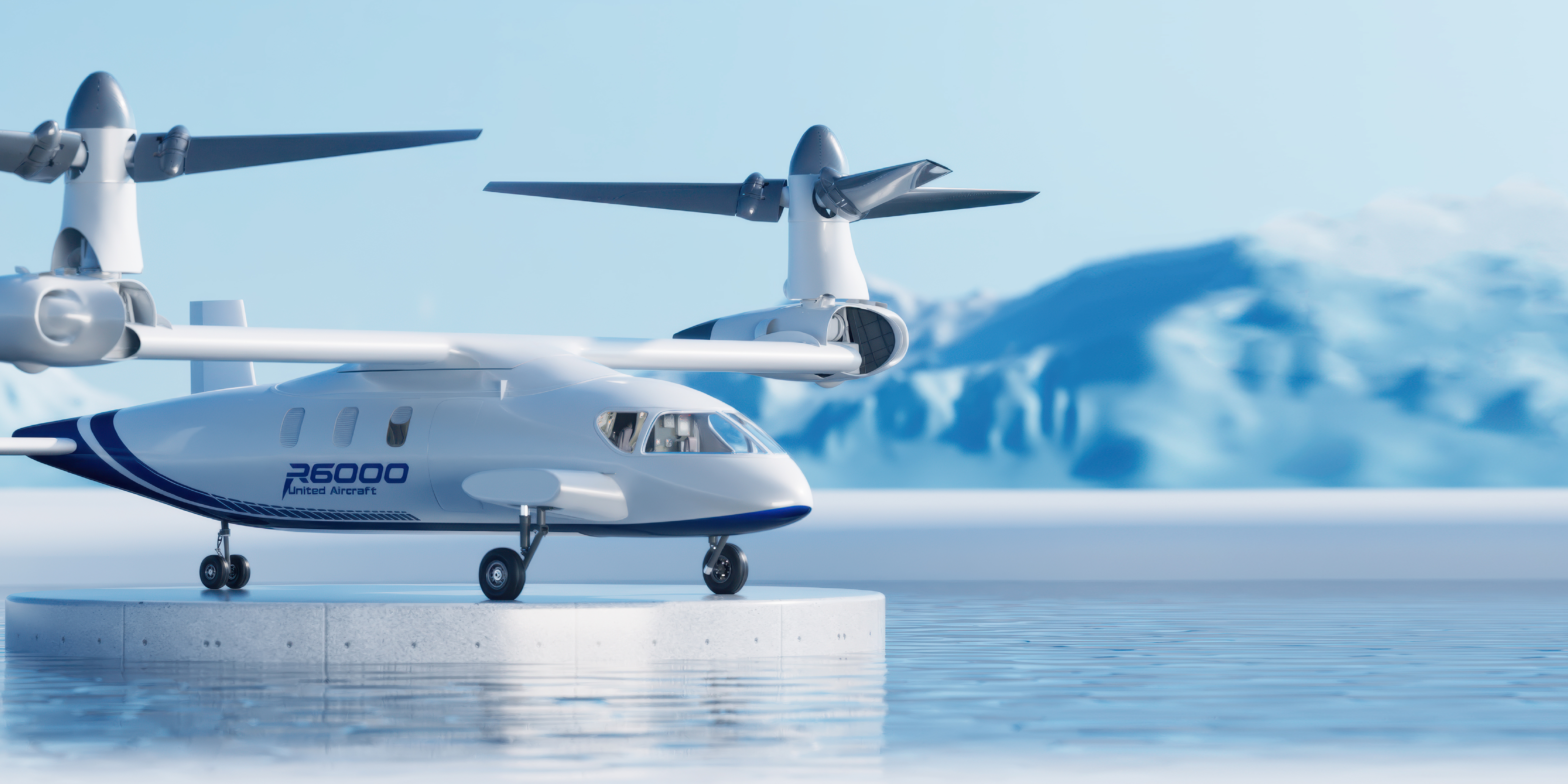

Lanying R6000 Tiltrotor Aircraft

Lanying R6000 is a six-ton tiltrotor aircraft independently developed by United Aircraft, combining vertical takeoff and landing (VTOL) capabilities of helicopter with the fast cruising speed of fixed-wing aircraft. It sets a new benchmark for long-distance, point-to-point efficient transport. By the exceptional speed, range, and payload capacity, it is able to perform diverse tasks effortlessly in challenging terrains and narrow urban spaces to lead urban air traffic into a new era. The R6000 is not just an innovative product. It is also a revolutionary breakthrough in urban air transportation, logistics, emergency rescue, and other fields. It propels us into a new era of efficient, intelligent three-dimensional transportation with unprecedented convenience and efficiency.

Small size, flexibility and wide range of application

No limitation of takeoff and landing areas. Vertical takeoff and landing are possible.

With less dependence on infrastructure, runways are not needed and it is highly suitable for special terrains such as mountains and islands.

Flexible configuration and execution of diversified missions

It is capable of accommodating 6 to 12 people for inter-regional air travel.

Enabling fast point-to-point and long-distance flights.

Undertaking all kinds of missions, and executing all-terrain and all-weather flight operations.

Performance Specification

11.832 m

Length

5.326 m

Height (helicopter mode)

17.5 m

Width (with rotors)

7.5 m

Rotor diameter

6100 kg

Maximum takeoff weight

2000 kg

Maximum payload

550km/h

Cruising speed

7620 m

Service ceiling

4000 km

Maximum range

2000 m

Hovering ceiling (OGE)

1500 km

Mission radius

7.6m³

Cargo space

Applications

Passenger travel | Aerial car

A flexible seat configuration for 6-12 persons is provided to create the “flying car” experience, and offer a comfortable and private space for high-end business and family travels. Takeoff and landing can be realized at small spaces such as parking lots and office building roofs for avoidance of transfer and transit to take on high-cost performance.

All-terrain multi-mission flight operation

The aircraft can carry various equipment based on different mission demands to conduct all-terrain and all-weather flight operations.

Emergency rescue | Air 120

It is able to take 2-4 injured persons and 4 medical staff when necessary with search and rescue and medical equipment. Quick response and deployment, execution of search and rescue as well as transfer of injured persons are ensured in an emergency situation.

Cargo transportation | Efficient logistics solution

High-value product shipping requirements are met with a maximum payload of 2 tons and a cargo space of 7.6 m3. Point-to-point and long-distance efficient transportation is realized, so it is suitable for intercity efficient logistics transportation and transportation involving special terrains.
