Long Endurance, High Safety, Portability, and Long Life

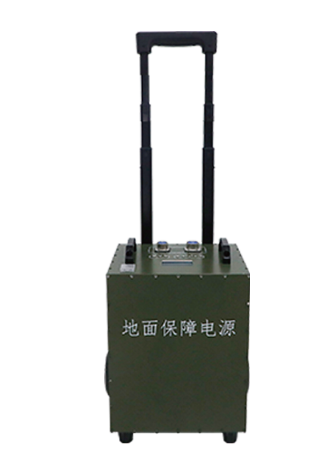

Ground Support Power Supply

Long Endurance, High Safety, Portability, and Long Life

The ground support power supply system is a ground DC power system used for routine maintenance of unmanned helicopters and supplies ground 28 VDC power for airborne electronics. The product mainly consists of the power supply unit, charging adapter, and power supply lines. When the engine is not started, this product meets the power demands during pre- and post-flight inspection, flight parameter configuration, data downloading, and routine maintenance activities. The system features great load capacity, powerful discharging capability, long cycle life, wide temperature range, high safety coefficient, portability, and usability; meanwhile, it is designed with an easy-to-operate state LCD.

Product Highlights

Great Load Capacity, Powerful Discharging Capability, and Long Cycle Life

Wide Temperature Range, High Safety Coefficient, Portability, and Easy Transportation, and Easy Operation

Technical Specifications

1200Wh

Rated Capacity

24VDC-30VDC

Output Voltage

30 A (Continuous) and 120 A (Max.)

Output Current

-40℃~+55℃

Operating Temperature Range

2000 Times

Cycle Life

445×280×350mm

Overall Dimensions

Applications

...

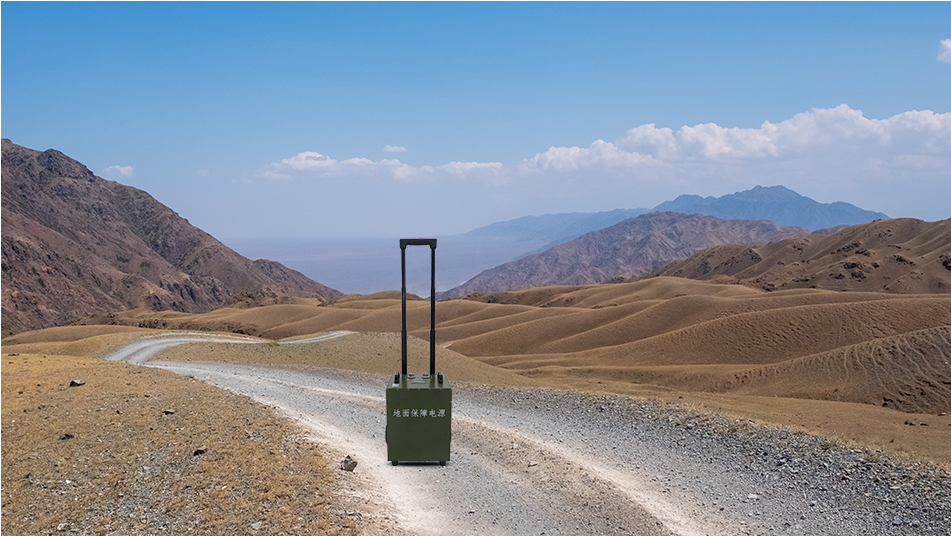

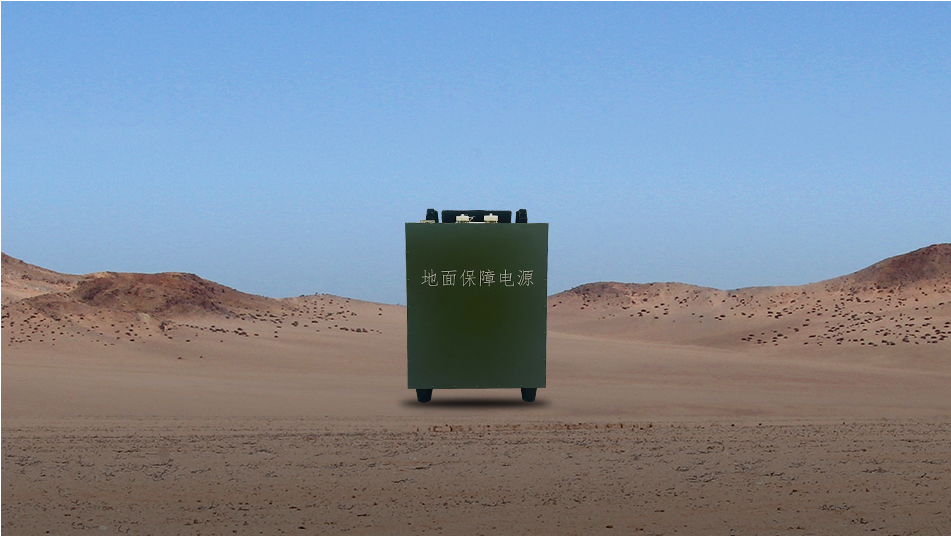

It attended various drills and exercises along with unmanned helicopters and experienced a variety of service environments covering plateau, desert, coast, and other natural environments.

...

UAV enterprises have demands for field test flight support and in-plant UAV ground power-on inspection.
