Low Cost, Downsizing, Lightweight, First-Rate Safety

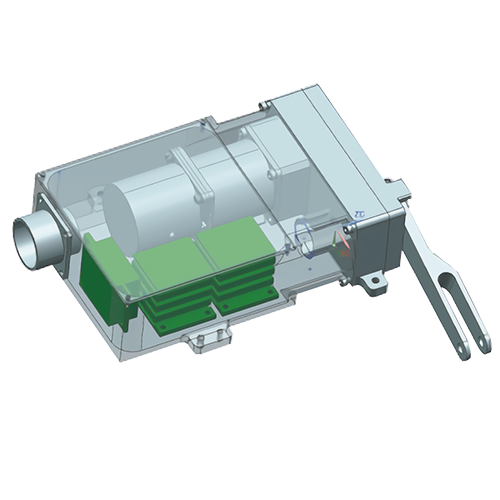

Smart Actuator

Predominant in High Reliability and Safety

This type of product integrates both the control unit and the actuating unit. It adopts the electrical dual-redundancy architecture with comparison monitoring and features compact structure and convenient installation and maintenance. Therefore, it is applicable to actuation at a low or medium power, such as UAV, spacecraft, and missile rudder.

Product Highlights

Reduce the cost of the application system for small- and medium-sized actuators

Enhance the safety and reliability of the application system for small- and medium-sized actuators

Technical Specifications

28VDC

Operating voltage

1.2kg

Weight

Empty load ≥ 80°/s

Max. rotating speed

±30°

Travel

72mm

Rocker length

RS422×2

Input command interface

≤0.8°

Mechanical backlash of output shaft

5 Hz (±1.5°, empty load)

Frequency band

Applications

...

R&D of 550 kg coaxial unmanned helicopter

...

Modification from 700 kg manned helicopter to unmanned platform
