High Integration, Better Compatibility, Redundancy, and High Adaptability

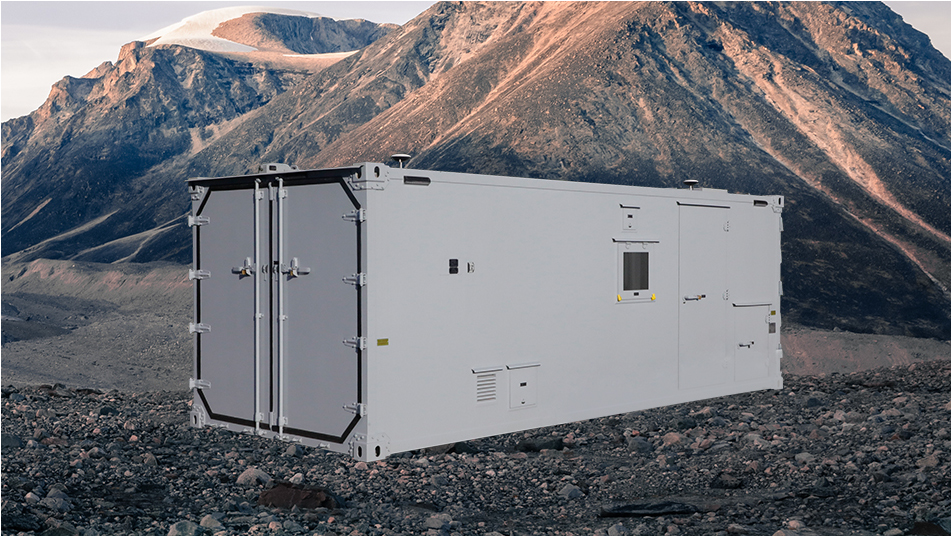

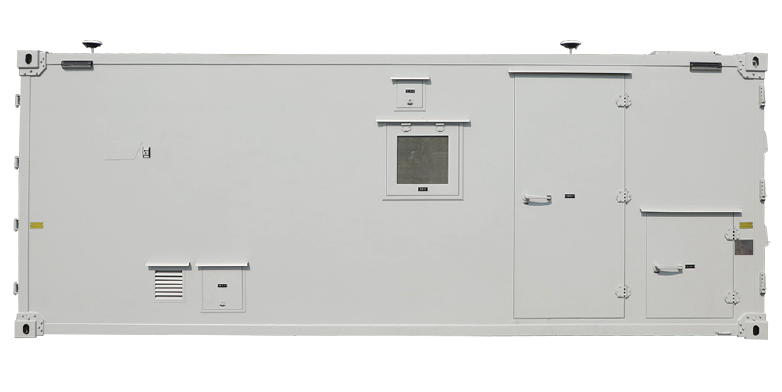

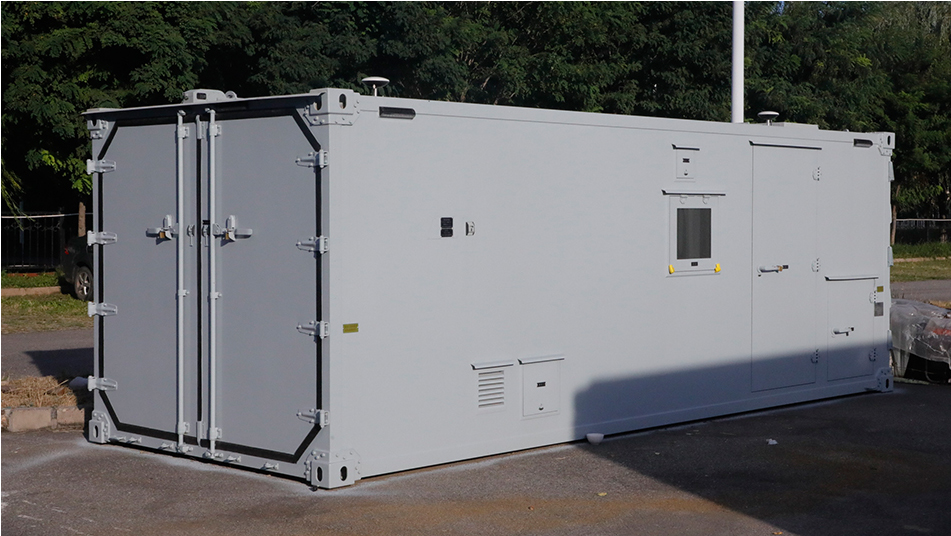

Vehicle-Borne/Ground Control Station

The vehicle-borne/ground control station (hereinafter referred to as control station) mainly consists of software and hardware.The software mainly includes flight control, navigation, data link, and mission payloads while the hardware mainly includes the compartment body, ground data terminal, power supply, and distribution equipment, and display console. The vehicle and communication product are optional.

The front section of the control station is the link compartment and diesel generator set compartment, the middle accommodates the control compartment, and the rear witnesses the unmanned helicopter transportation compartment. The control station takes the network information transmission and rapid system response capabilities as cores and integrates flight monitoring, mission monitoring, and unmanned helicopter transportation. It is configured as an unmanned helicopter system for reconnaissance and monitoring. With its high standard, serialization, generalization, and expansibility, it is applicable to different unmanned helicopter systems.

Product Highlights

Outstanding Compatibility of Data Link Equipment

Redundancy Configuration, High Integration, Powerful Maneuverability, and Customization

Technical Specifications

6700mm (excluding the chassis)

Length

2500mm

Width

2500mm (excluding the chassis)

Height

1~20

Number of Mission Courses

5500 kg (excluding the chassis)

Weight

100~200km

Data Transmission Distance

Applications

...

The product was applied in an institute experiment ground project of CSSC

...

UAV scientific research institutes or enterprises and public institutions having UAV integrated control and transportation demands

...

Military industry research institutes have demands for guided weapon and equipment command and control
