Simple, Portable, and Rapid in Response

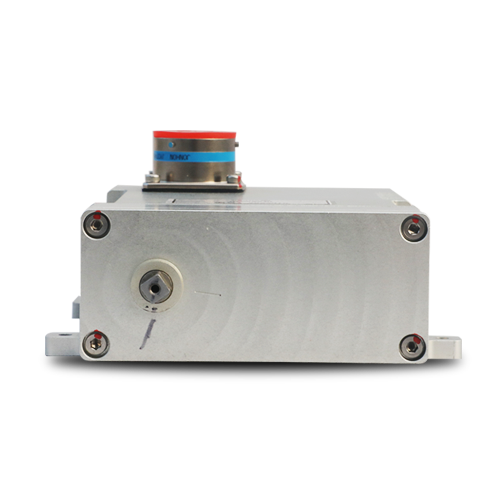

Rotary Actuator

Redundancy Design, High Reliability

The totally enclosed rotary electric actuator adopts the electrical dual-redundancy and mechanical single-redundancy configurations. For the electrical dual-redundancy configuration, the duplex winding brushless motor and dual-redundancy RVDT angular position sensor are equipped. For mechanical driving, the straight gearbox is adopted for deceleration, and one mechanical output shaft is equipped. The dual-redundancy brushless motor operates in main/standby mode, and is configured with the dual-redundancy sine-cosine resolver for control over the dual-redundancy brushless motor (FOC).

Product Highlights

Occupancy of a small area, and high power and torque density

Electrical dual-redundancy, rotational motion of output shaft

Technical Specifications

≥80°/s

Max. rotating speed

18N•m

Output moment

±30 °

Travel

1%

Position accuracy

5Hz

Frequency band

Applications

...

Modification from 700 kg manned helicopter to unmanned platform

...

R&D of 550 kg coaxial unmanned helicopter
