Low Cost, High Efficiency, First-Rate Safety

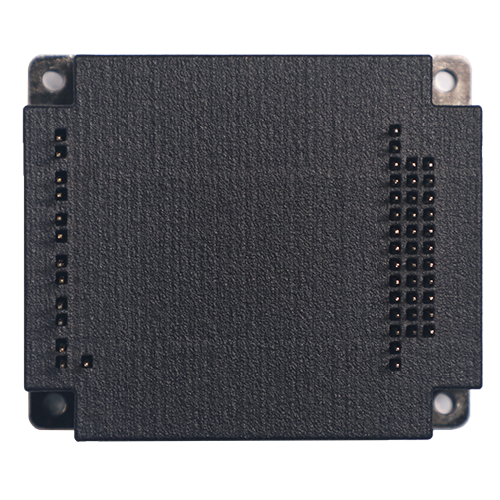

28V Actuator Servo Driver

This servo driver is applicable to servo control over the electric actuators of the brushless DC motor (BLDC) and permanent magnet synchronous motor (PMSM). It adopts the cutting-edge digital discrete closed-loop control technology, feedforward control technology, and motor control technology (FOC), and supports CANopen communication protocol, provides full-fledged protection logic and data monitoring function. Therefore, it can be used for servo control over satellites, missiles, unmanned helicopters, and other systems.

Product Highlights

Reduce the cost of application system for small- and medium-sized actuators

Shorten the development period for small- and medium-sized actuator systems

Technical Specifications

18V~36V

Power supply

500Hz

Max. frequency

40A

Peak current

Potentiometer, rotary transformer, encoder

Position feedback

RS232, CAN

Communication interfaces

±1%FS

Steady-state position accuracy

59×24.7×50mm

Dimensions

Failure data storage function

Auxiliary function

Applications

...

R&D of 300 kg coaxial unmanned helicopter

...

Modification of 700 kg manned helicopter to unmanned platform

...

R&D of 550 kg coaxial unmanned helicopter
