TA-Q5 Tunnel Patrol UAV

Tunnel Defender for Safe Escort

TA-Q5 Tunnel Patrol UAV

TA-Q5 subway tunnel patrol UAV is designed for autonomous flight and operation in urban subway tunnels, highway tunnels, railway tunnels, and bottom areas of highway and railway bridges. With the help of our patrol and inspection result analysis software matched to this UAV platform, the inspection report can be generated automatically, thus improving the tunnel patrol efficiency and reducing cost.

...

Support Flight in GPS Signal-Free Environment

The UAV can still automatically fly stably and durably in subway tunnels and DTSS main/side tunnels where GPS signals cannot be received, and can automatically detect defects.

...

Long Range and Endurance

After the flying range is set, the UAV can implement long-range and long-endurance patrol in checking tunnel cracks, tunnel blockage, rebar exposure on tunnel surface, vagrants in tunnels, and perform other long-distance line inspection.

...

High-Accuracy Inspection

This UAV supports the one-key startup function. Its autonomous flight is feasible by navigation based on the visual and laser radar. It can carry diversified types of EO pods and 4K wide-angle detection camera for data and information acquisition. Even though in the low-light environment, it can still acquire high-accuracy data.

...

High Efficiency at a Low Cost

With the help of our patrol and inspection result analysis software matched to this UAV platform, position calibration, defect tag selection, and data screening for the photograph data can be implemented, and the automatically generated inspection report is able to be opened directly on the web page or in Microsoft Word. This helps improve the tunnel patrol efficiency and reduce cost.

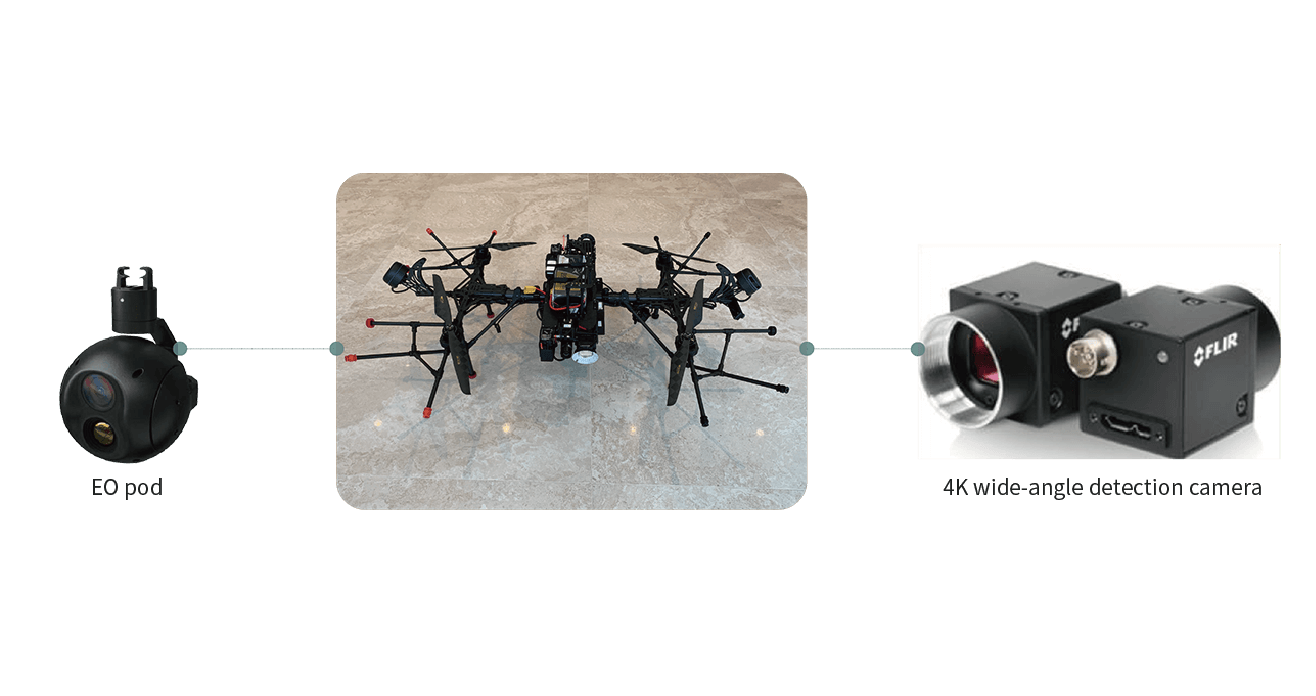

Loadable Payloads

Visual and laser radar navigation, 4K wide-angle detection camera, EO pod, etc.

...

Performance Specification

2m/sec

Flight speed (automatic)

6.9kg

Weight (including battery)

22min

Flight duration

2.6km

Applicable Max. pipeline length

2 m×1.5m or 2.4m (width, height or diameter)

Applicable Min. pipeline section

Autonomous obstacle avoidance, return to base and landing at low battery capacity, water floating, rotor protection

Safety functions

Max frame rate: 75 FP Read-out method: global shutter Pixel size: 3.45 um

Camera module

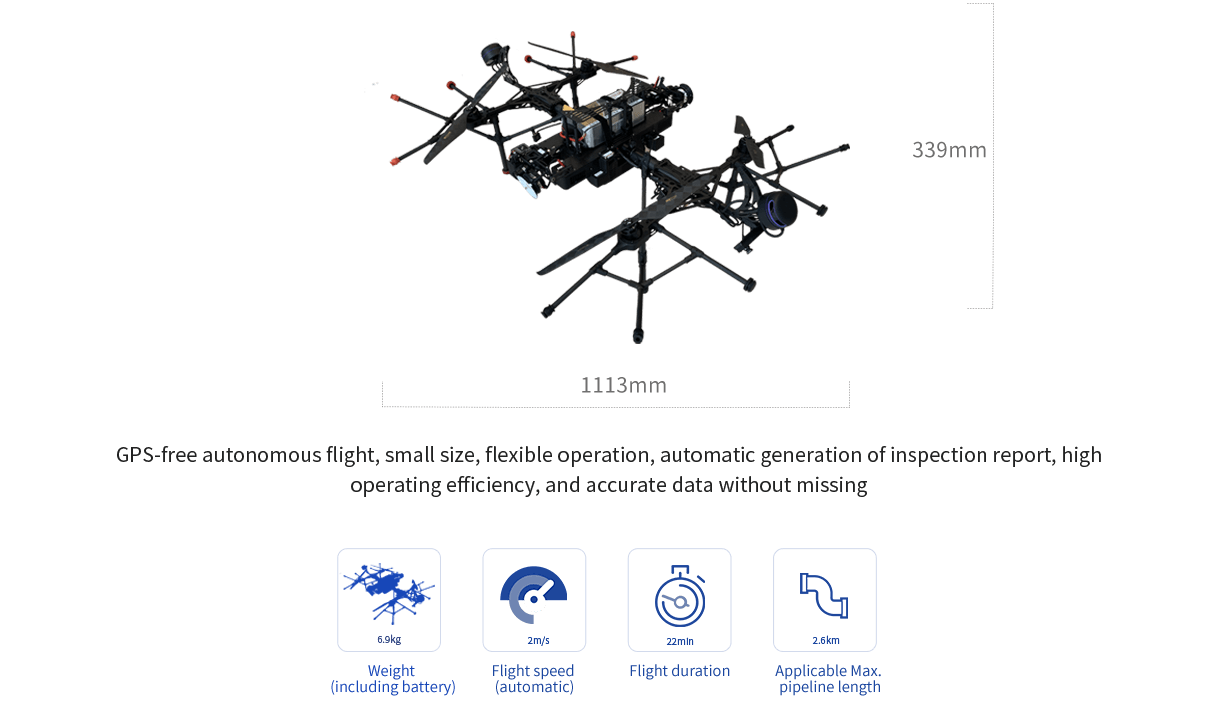

Deployed: 1113mm×888 mm×339mm；Folded: 886mm×482mm×592mm

Dimensions

Applications

...

Subway tunnels

...

Railway tunnels

...

Bottom areas of highway and railway bridges
