TA-Q12 Multi-Rotor UAV

Lightweight Elite in the Air

TA-Q12 Multi-Rotor UAV

TA-Q12 is a small-size quad-rotor UAV completely made of carbon fiber materials. By leveraging the advanced algorithms such as active disturbance rejection, it shows stable flight attitude and is applicable to diversified complicated operating conditions. It can carry high-accuracy integrated navigation equipment and 3-light (visible light/IR/laser ranging) EO pod for executing missions such as reconnaissance, patrol, and search and rescue. This UAV is preponderant owing to its fast deployment, long operating range, long endurance, and easy maintenance.

...

Integrated Design

The whole UAV is made of carbon fiber materials, greatly reducing complicated connectors. Therefore, it can carry more payloads. Owing to the carbon fiber fuselage, the airframe enjoys light weight and is rainproof for the sake of electronic equipment protection.

...

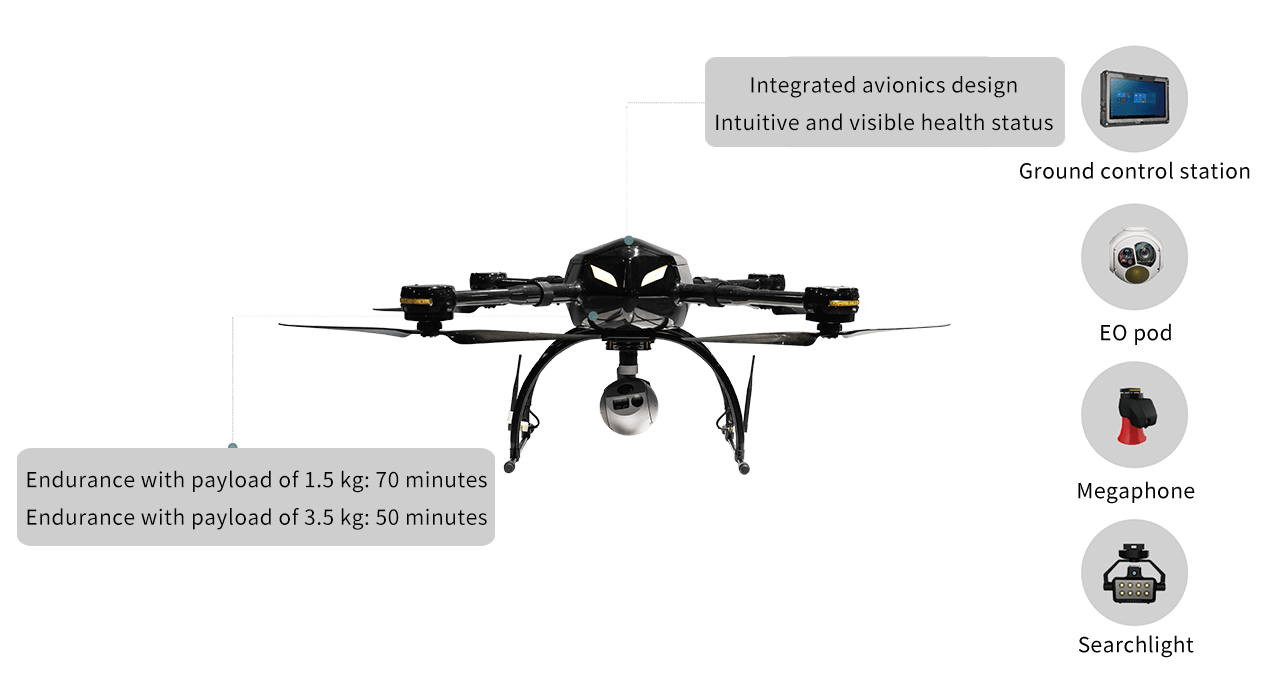

Long Endurance and High Loading Capacity

The endurance for an empty UAV can reach 85 minutes, that for the UAV with payload of 1.5 kg is 70 minutes, and that for the UAV with payload of 3.5 kg is 50 minutes.

...

Sophisticated Control Algorithms and Accurate Landing

By leveraging the advanced algorithms such as active disturbance rejection, the UAV can fly much more stably and be stronger in wind resistance. Thus it is applicable to more complicated operating conditions. It can implement centimeter-sized accurate landing.

...

Target Identification and Tracking

The UAV can identify and track moving or static targets and perform following flight or accompanying flight.

Loadable Payloads

Ground control station, megaphone, 3-light EO pod, integrated navigation equipment, searchlight, etc.

...

Performance Specification

5500m(plateau type)

Service ceiling

15km

Control radius

20m/sec

Max. level speed

wind force 6 (12m/sec)

Wind resistance capability

-45℃-+55℃

Operating temperature

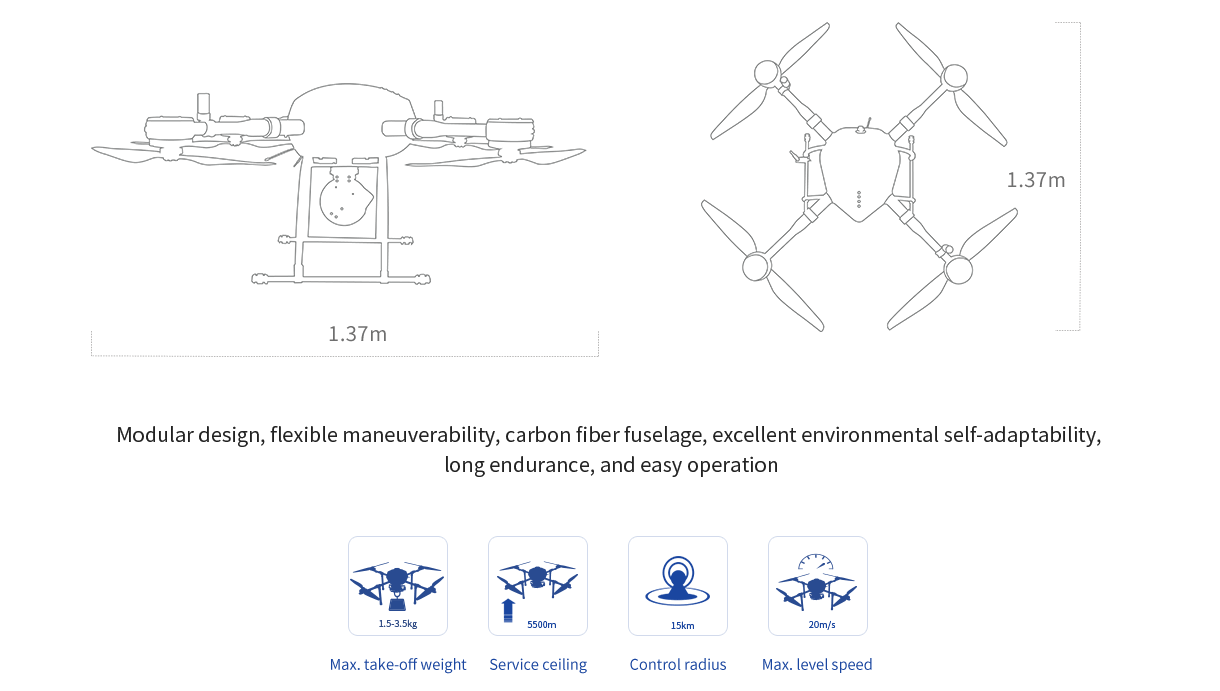

1.37m*1.37m（L*W）

Size with blade tip deployed

1.1m

Distance between shafts

85min

Max. endurance

Applications

...

Air patrol

...

Intelligence reconnaissance

...

Refined inspection of power lines by visible light
